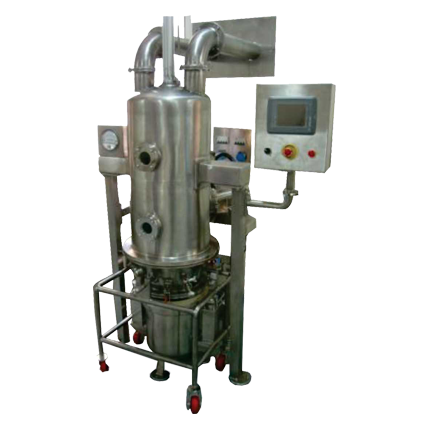

Name: Fluid Bed Dryer
Brand: Lotus Engineers

Fluid Bed Dryer Blender Specifications

Fluid Bed Dryer is mainly used for fast & uniform drying of powder & granules of pharmaceutical, food & powder processing industries. It works on the principle of fluidization.

Fluid Bed Dryer

Salient Features:
Technical Specifications:

Available in various models ranging from 5.0 Kgs. To 250 Kgs. Batch capacity.
cGMP construction with SS 316 Contact parts.
Steam / Electrical heating mode, to suit site conditions.
Two piece design with pneumatic sealing for finger bag (OPTIONAL).
Pneumatic container sealing arrangement to meet USFDA requirements.
AISI 316Q product contact parts.
Unit available with / without HEPA filtration facility.
Unit available with / without CIP/WIP facility
Specially designed explosion flap provided for the additional safety of the equipment.
Specially designed retarding chamber to provide extra-large heat transfer area, exposed each and every particle of the charged batch in the fluidized air resulting in uniform and fast drying.
Tubular construction of container trolley mounted on PU wheels imparts rigidity to carry the product container with the charged load.
Pneumatic container lifting and bag shaking arrangement.
Intrinsically safe earthling arrangement with low voltage relay shall be provided on demand.

Description	Lefbd-30	Lefbd-60	Lefbd-120	Lefbd-200	Lefbd-250
Capacity Of Dryer In Kgs At 0.6 Kg/Lt Bulk Density	30-50	50-70	120-150	200-220	250-270
Working Capacity Of Product Container In Liters	50	100	200	335	420
Total Volume Of Product Container In Ltrs	100	200	400	580	760
Blower Motor H.P.	5 H.P.	10 H.P.	15 H.P.	20 H.P.	25 H.P.
CBlower Capacity M3/Hr	1400	1800	4200	5200	7000
Heater Load	18 K.W.	36 K.W.	60 K.W.
Steam Consumption Kgs/Hr	25 Kgs	55 Kgs	110 Kgs	180 Kgs	240 Kgs
