Planetary Mixer



Planetary Mixer Specifications

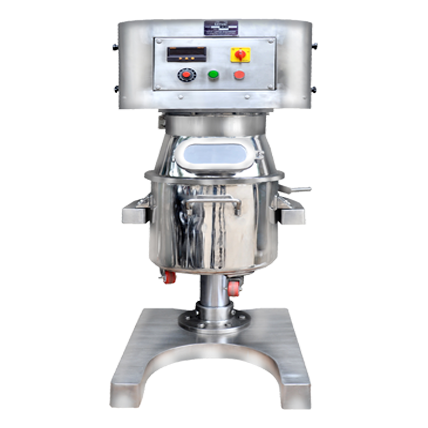

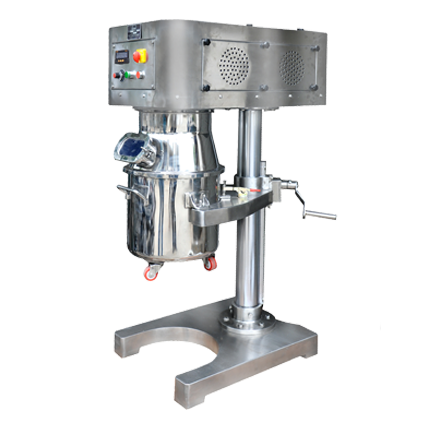

Planetary Mixer Consists Of 2 Open / Cage Type Agitators Which Move In Planetary Motion Hence Giving 3 Dimensional Mixing To The Material In The Bowl. There Is A High Speed Homogenizer Through A Hollow Shaft With An Independent Drive System ( For Cream / Ointment Mixing Model Only) The Beater And Scraper Rotate With Help Of Motor And Gear Box And The Planetary Motion Is Provided By Another Set Of Gears Fitted In The Machine. The Bowl Is With / Without Jacket To Suit Process Requirement. It Is Provided With Suitable Locking System Which Is Removable Type. Top Assembly Consists Of A Top Dish With Gasket, Gear System Coupled With Suitable Gear Box And Motor. Suitable Lifting System Is Given For Top Lid, Lifting And Lowering. Contact Parts Are Of S.S. 316 Or S.S. 304 As Per Clients Requirements And Non Contact Parts Are Cladded With S.S. 304 In Case Of Gmp Model And Painted In Case Of Non Gmp Model.


  • Suitable For Powder Mixing And Cream / Ointment Mixing Application.
  • All Contact Parts Are Made Out Of S.S. 316 / Ss 316l To Suit Customers' Requirement.
  • Horse Shoe Base With Suitable Gun Metal Bush Housing With Suitable Retaining Plate And Supports.
  • Cgmp Model. All Product Contact Parts Are Polished To 220 Grit Mirror Finish.
  • Flame Proof Construction Available Upon Request, At Extra Cost.
Model CGMP Model
Capacity in Ltrs. 100 / 200 / 350 Ltrs.
Capacity in Kgs. 50 / 100 / 200
Container Type Cylindrical bowl with flat bottom for powder mixer Cylindrical bowl with hemispherical bottom for cream / ointment mixing.
Jacket Type Plain container without jacket for powder mixing. Steam / Electrically jacketed container for cream / ointment mixing.
Power 3Ph / 415VAC / 50 Hz
Product contact parts SS 316 ( SS 316 L on demand)
Beater type Open type beater for powder mixing & cage type beater for cream / ointment mixing.
Main Drive motor Dual speed, Dual HP main drive motor for dry & wet mixing application.
Lifting motor 1.0 HP / 3Ph/415VAC
Lifting Type Manual Lifting fo 100 Ltrs. Model & motorised / Hydraulic lifting for 200 & 350 Ltrs. Model.
RPM Planetary 20 / 40
Beater 60 / 120
