Name: Multi Mill Machine
Brand: Lotus Engineers

Multi Mill Specifications

A high performance unit, our Multi Mill Machine is extensively used in a wide range of industries. Lotus Engineers as the leading Multi Mill Manufacturer has been offering their machineries to a host of clients for the past 2 decades earning their trust and appreciation.

The Multi Mill Machine is a multipurpose equipment used in mixing Pharmaceuticals, Chemicals, Colours, Dyes, Cosmetics, Ceramics and even Food Products. Installed with high quality blades and beaters, the machine achieves best mixing results with both dry and wet ingredients without overworking them. Beaters can change directions with a flick of a switch and the cylindrical screen ensures maximum output.

Being the Multi Mill Manufacturer Ahmedabad we esure each of our machines are designed, built and tested for highest quality and energy efficiency. Multi Mill Machine's stainless steel body is easy to maintain and corrosion resistant allowing our clients to use them for years together without any complaint. We promise you unmatched quality at the most competitive price in the market.

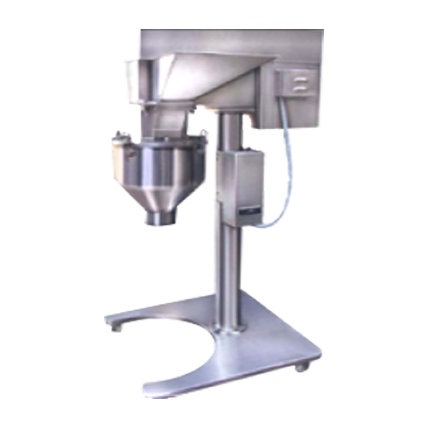

Multi Mill Machine

Salient Features:
Technical Specifications:

Direction Of Beaters Can Be Changed By Reversible Switch From Knife To Impact Forward And Vice-Versa.
All Contact Parts Can Be Easily And Quickly Dismantled And Cleaned.
Machine Is Designed For Continuous Operation.
Cylindrical Screen For Higher Output.
Castors Provided For Mobility.
Flame Proof Electricals Can Be Provided At Extra Cost.
Beaters And Scrapper Blades Of Ss 410 Quality Are Hardened And Hard Chrome Plated.

Model	CGMP Model
Capacity	50 - 200 Kgs/Hr. Depending Upon Screen Size And Product Propertie Of Fed Materials.
Motor Hp	3.0 Hp / 1440 Rpm
Power	3ph/415vac/50 Hz
Rotor Speed	720/1440/2160/2880 Rpm
Beaters	12 Nos. Knife Blades And 02 Nos. Scraper Blades
Rotor Assembly Dia.	Approx. 250 Mm
Screen Diameter	Dia. 260 X 138 Mm Ht.
Charging Height	1450 Mm
Discharging Height	730 Mm
Starter	Dol Starter With F-R Switch Shall Be Provided.
Surface Finish - Contact Parts	220 Grit Mirror Finish
Surface Finish - Noncontact Parts	150 Grit Mat Ffinish
Overall Dimensions	875 X 970 X 1650 Mm Ht.
Net Weight	280 Kgs. Approx..
Gross Weight	430 Kgs. Approx..
Case Dimensions	1225 X 1570 X 1875 Mm Approx..

Optional

Different Hole Size Screen Available From 0.5 Mm To 12 Mm.
Mesh Size Screens Available On Demand, 4# To 100 Mesh.
