Packing Conveyor

Packing Conveyor Specifications

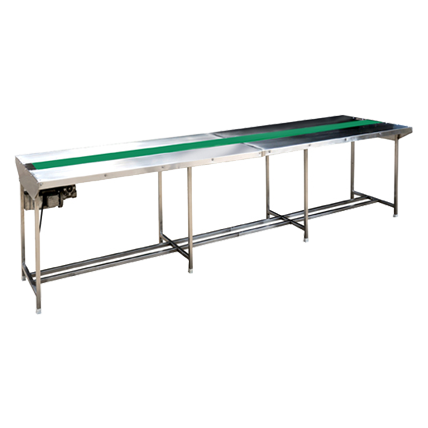

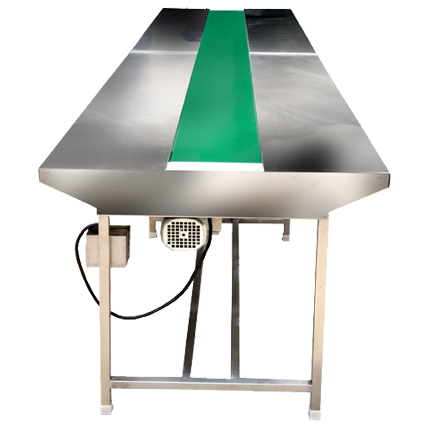

Packing Conveyor Is Used For Many Purposes It Is Widely Used For Mono Cartooning /Cartooning Of Bottles, Tube, Strips Etc. Manually Workman Can Be Seated And Carrying All Operations Packing Belt Conveyor Table Consists Of Pvc Belt Running On Ss Table, Which Has Side Platforms, It Has Ss Top Mounted On Tubular Structure Made From Stainless Steel Pipe. Entire Table Is Elegantly Buffed. It Has Two Rollers On Driven Side For Running Of Belt An A. C. Variable Frequency Drive Is Provided For Start /Stop And Step Less Speed Change It Is Available In Different Length.


  • Speed Variation Though Ac Variable Drive
  • Height Must Be Adjusted, If Confirm With Order.
  • General Structure Completely Made Of Ss304 In Gmp Model.
  • Safety Guards & Covers Made Out Of Ss304 In Gmp Model
  • Legs Made Of Ss304 In Gmp Model.
Construction CGMP Construction
Drive Motor Hp Bn 63 B4 0.25 Hp (0.18 Kw) 1320 Rpm (Bonfiglioli Make)
Gear Vf 44 F10 P63 B5 B3 (Bonfiglioli Make)
Power Characteristics 220 Volts, 1 Phase 50 Hz, Ac
Roller Diameter Dia. 100 Mm
Conveyor Belt 3003 Mm Black Pvc
Overall Dimensions 915 X 2500 X 780 Mm Ht.(Apppox)
Electrical Panel Ss 304 Box With Vfd (Delta Make)
Belt Speed 35 Meter/ Miminute ( Max).
